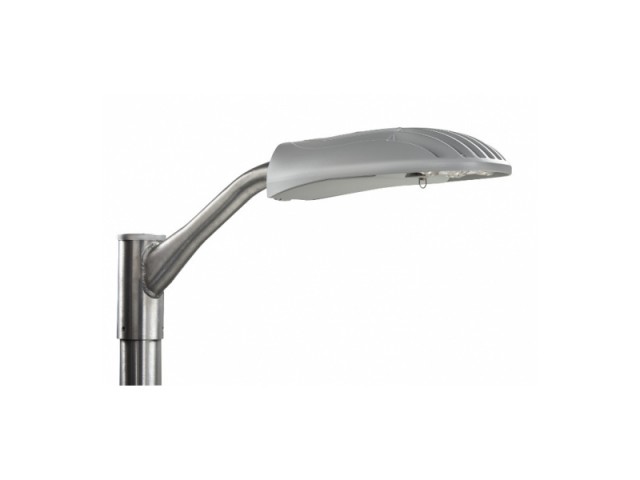

CREE XSP Series LED Street Luminaire

CREE XSP Series LED Street Luminaire

  • Brand: CREE LED Lighting
  • Product Code: CREE XSP Series LED Street Luminaire
  • Availability: In Stock

    The Cree® XSP Series LED street and area luminaires share the same cobra-head style housing you've seen for years, but delivers up to 23,800 lumens with incredible efficiency and illumination performance you need. In addition to substantial energy and maintenance savings, the XSP Series achieves better optical control with the NanoOptic® Precision Delivery Grid™ optic over incumbent street lighting solutions from — up to 400W.


    SPECIFICATIONS

    • Efficacy: Up to 129 LPW
    • Input Voltage: 120-277V or 347-480V, 50/60Hz
    • Lumen Output: Up to 23,800 L
    • Wattage: 25 - 139 W
    • CCT: 2700K, 3000K, 4000k, 5000K, 5700K
    • CRI: Minimun 70 CRI


    CONSTRUCTION & MATERIALS

    • Die cast aluminum housing
    • Tool-less entry
    • Mounts on 1.25" (32mm) IP, 1.66" (42mm) O.D. or 2" (51mm) IP, 2.375" (60mm) O.D. horizontal tenon (minimum 8" [203mm] in length) and is adjustable +/- 5˚ to allow for fixture leveling (includes two axis T-level to aid in leveling)
    • Luminaire secures with two mounting bolts standard; optional four point mounting available
    • Exclusive Colorfast DeltaGuard® finish features an E-Coat epoxy primer with an ultra-durable powder topcoat, providing excellent resistance to corrosion, ultraviolet degradation and abrasion. Black, bronze, silver and white are available


    Download
