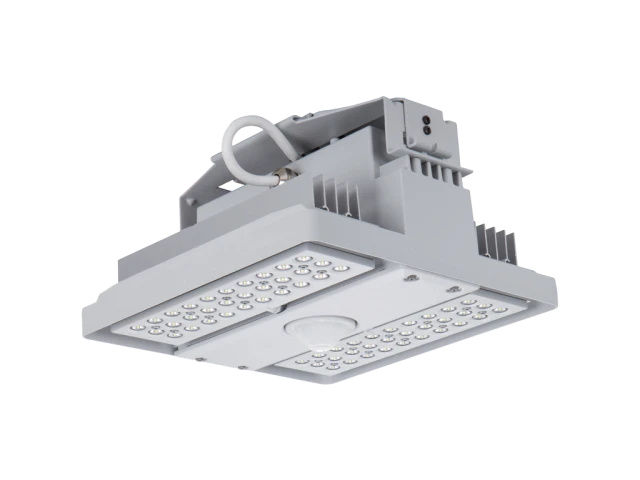

CREE 304 Series LED Luminaire

CREE 304 Series Canopy luminaires

  • Brand: CREE Lighting
  • Product Code: CREE 304 Series Canopy luminaires
  • Availability: In Stock

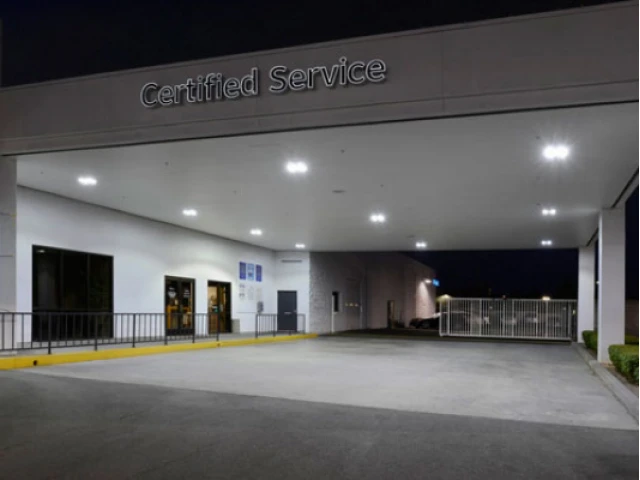

    Exterior lighting sets your business apart from the pack and makes the first impression. Enhance the lighting in your outdoor spaces with 304 Series™ luminaires. With nearly maintenance-free operation and lifetime energy savings, the 304 Series™ is ultra efficient. Designed for upgrades or new construction, the luminaire is easy to install and will look great for years. Available in 40- or 60-LED configurations, three power conditions, and multiple optical distributions and mountings, the 304 Series™ is an affordable high-performance lighting solution.


    SPECIFICATIONS

    • CRI: Minimum 70 CRI
    • Input Voltage:  120-277V or 347-480V, 50/60Hz
    • CCT: 4000K (+/- 300K), 5700K (+/- 500K) standard
    • Limited Warranty: 10 years
    • Efficacy: up to 117 LPW
    • Lumen Maintenance: Consult Spec Sheet
    • Lumen Output: 4291 - 4600 L
    • Wattage: 46 - 135 W
    • Power Factor: > 0.9 at full load


    CONSTRUCTION & MATERIALS

    • RS Mount luminaire housing is constructed from rugged die cast aluminum and incorporates integral, high performance heatsink fins specifically designed for LED canopy applications
    • RD Mount luminaire housing is constructed from rugged die cast aluminum and features high performance extruded aluminum heatsinks specifically designed for LED canopy applications
    • LED driver is mounted in a sealed weathertight center chamber that allows for access from below the luminaire
    • Field adjustable drive current between 350mA, 525mA and 700mA on Non-IC rated luminaires
    • Luminaire housing provided with factory applied foam gasket and provides for a watertight seal between luminaire housing and canopy deck
    • Mounts directly to the canopy deck and is secured in place with a die cast aluminum trim frame
    • RS mount includes integral junction box which allows ease of installation without need to open luminaire
    • Suitable for use in single (RS Mount) or double (RD Mount) skin canopies with 16" (406mm) wide panels
    • Designed for canopies of 19-22 gauge (maximum 0.040" [1mm] thickness)
    • See 228 Series™ canopy luminaires for canopies using 12" (305mm) deck sections• Exclusive Colorfast DeltaGuard® finish features an E-Coat epoxy primer with an ultra-durable powder topcoat, providing excellent resistance to corrosion, ultraviolet degradation and abrasion. Black, bronze, silver, and white are available


    Specifications
    Input Voltage120-277V or 347-480V, 50/60Hz
    CCT4000K, 5000K
    CRIMinimum 70 CRI
    Power Factor> 0.9 at full load

    Download
