TE LED Mini Floodlight

TE LED Mini Floodlight

  • Brand: TE
  • Product Code: MIF
  • Reward Points: 700
  • Availability: In Stock

    TE Brand’s latest Mini Floodlight Series is now able to provide DIRECT SUBSTITUTE for tungsten halogen and Metal Halide floodlights with a stunning energy saving of up to 80% and yet providing an equivalent quality of light.

    The extremely long life of 50,000 hours means that you can reduce the maintenance/replacement costs greatly as compared to the for tungsten halogen/Metal Halides counterparts.

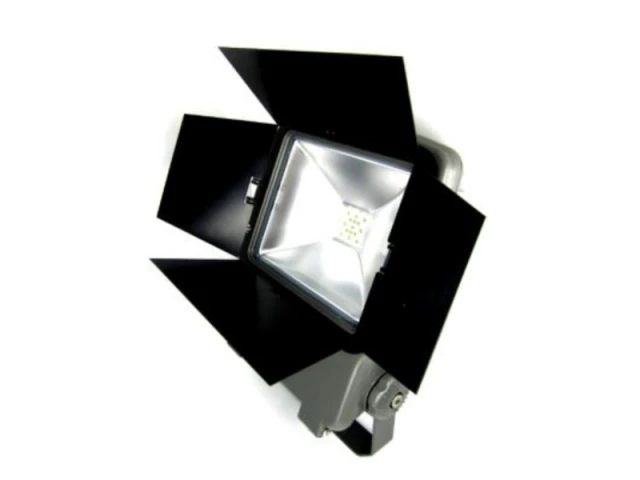

    This series comes with 2 years product warranty for all models.Optional Hoods/Barn Doors are available for your selection that can deliver controlled beam angles and avoid light pollution to the surroundings.


    • IP Rating IP65

    • Latest version of Cree LED chips are used ensuring a high quality light output and high reliability.

    • Excellent heat management made possible by the use of VC Heat Spreader and a well-constructed casing. Thus life of LED is guaranteed for 50,000 hours.

    • Rugged luminaire construction by the use of die cast aluminium and tempered front glass allows it to be installed in all tough outdoor or indoor applications and is vandal-proof. The protection grade is IP65.

    • Graduated angle indicator for easy aiming of light.

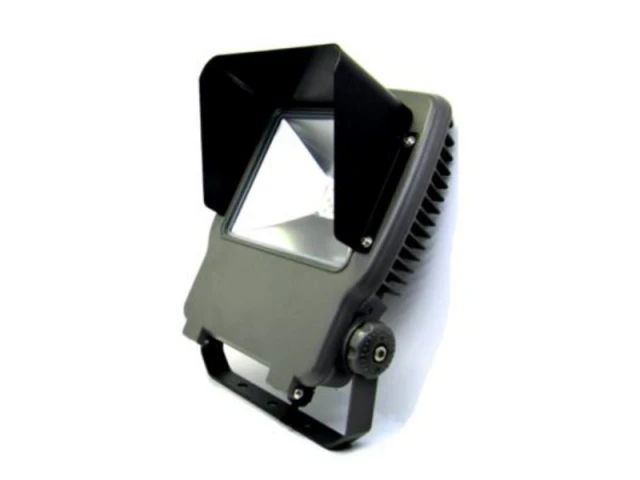

    • Choice of various types of hoods to avoid “light pollution” to the surroundings.

    • 2 years one-to-one replacement product warranty.


    • Input Voltage: AC 90-260V

    • Lumen Output: 825-1050 LM, 1820-2520 LM, 5187 LM

    • Wattage: 15W, 35W, 80W

    • Beam Angle: 125°

    • CCT: 2800-6000K

    • Length: 85mm, 250mm, 500mm, 1000mm

    Regulatory Qualifications

    • EN 60598-2-1:1989

    • EN 60598-1:2008+A11:2009

    • EN55015:2006+A1:2007+A2:2009

    • EN61547:2009

    • EN61000-3-2:2006+A1:2009+A2:2009

    • EN61000-3-3:2008

    Total Harmonic DistortionEN61000-3-2<15%
    Input VoltageAC 90-260V
    Wattage15W, 35W, 80W
    Lumen Output830-900 LM, 2490-2700 LM, 4980-5400 LM
    CCT3000K / 4000K / 6000K
    Beam Angle125°
    CRI> 70Ra
    Power Factor> 0.90
    IP Rating65
    ​Material and Structure
    DetailsDie Cast Aluminum


    TE Lighting
    TE LED Mini Floodlight

    Tags: TE, Flood Light
